Arbitrary waveform generators

This NI PCI-5412 is a 100 MS/s, 14-Bit Arbitrary Waveform Generator which has 20 MHz analog bandwidth with a function generator emulation mode. A multi-module synchronization less than 20 ps skew. Has 8, 32, or 256 MB of shared data, ...

Main Features - Advanced DDS technology, max 150MHz frequency output - Up to 400MS/s sample rate, and 1μHz frequency resolution - Vertical Resolution : 14 bits, up to 8K arb waveform length - Comprehensive waveform output : 5 basic ...

The M4i.662x-x8 delivers the highest performance in speed and resolution. The series includes PCIe cards with either one, two or four synchronous channels. The large onboard memory can be segmented to replay different waveform sequences. ...

Product Overview SIGLENT’s SDG1000X is a series of dual-channel function/arbitrary waveform generators with specifications that include up to 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary ...

Overview: Following the 2011 launch of SDG1000 series, SIGLENT has designed a multi-purpose function/arbitrary waveform generator SDG5000 series. The SDG5000 series combines the mature technology adopted by the SDG1000, the advanced DDS ...

SDG2000X Series function/arbitrary waveform generator Product overview: SIGLENT’s new SDG2000X Series dual-channel Function/Arbitrary Waveform Generator is available in max. 120MHz bandwidth and employs a fast (1.2GSa/s) and hi-resolution(16-bit ...

Overview: The SDG800 series function/arbitrary waveform generator family output frequencies up to 5MHz (pulse), 10MHz (square), 30MHz (sine) and have a sampling rate of 125MSa/s. They use the SIGLENT EasyPulse technology which produces ...

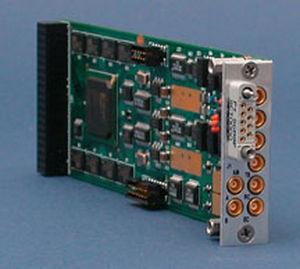

The Talon Instruments™ MA1801A is a single width ANSI standard MA-Module that contains two 14-bit Arbitrary Waveform Generator (AWG) channels which can operate independently or in sychronization. The maximum sample rate is 125 MS/s. Dual ...
