Backplanes

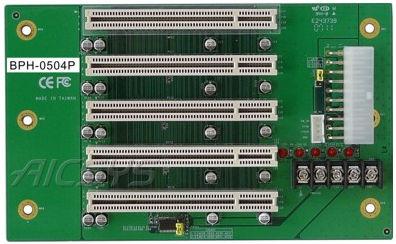

5-Slot PCI Passive Backplane for Half-size PCI-bus Slot CPU board

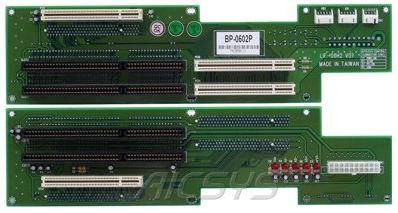

6-Slot 2U PCI Passive Backplane (2) Full-Size PICMG CPU Slots, (2) ISA, and (2) PCI Slots Multilayer PCB ATX Power Connector

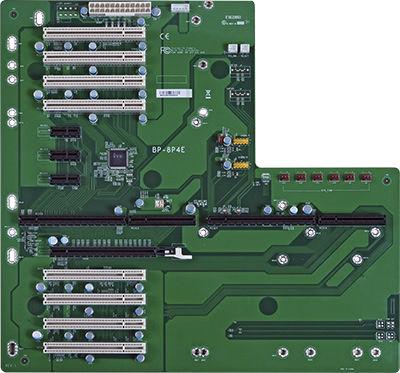

Expansion 1 PCIe x16 3 PCIe x1 8 PCI Features 4 USB 2.0 24-pin ATX

The ADES BH-0403 4-slot multilayer PCB backplane offers efficiency, durability and reliability, and features one PCI CPU clot and 3 PCI expansion slots, power indicators (LED), a P8 & P9 AT power connector and a 20-pin ATX power connector.

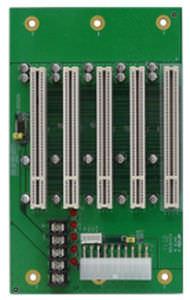

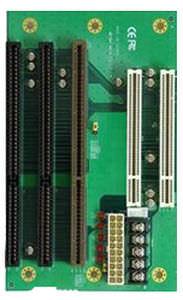

This BH-0502 is a 5-slot Backplane for Half-size PCI/ISA-bus slot CPU boards, manufactured by Ades Corporation. The device is comprised of a CPU slot, and ISA and PCI slots. Power LED indicators and Multilayer PCB are also included in ...

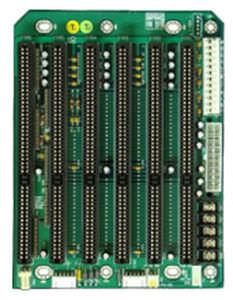

The BH-6I is a six-slot ISA passive back plane. It has features of power LED indicators and a multi-layer PCB design. The product also features two main power connectors, P8 and P9, and is powered by a 20-pin ATX power connector. It ...

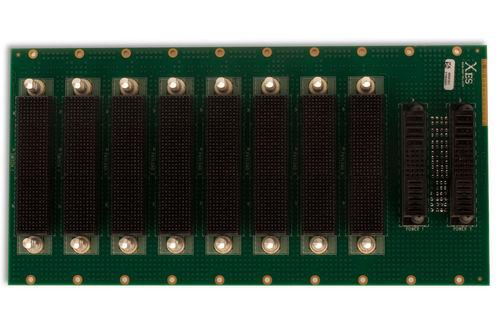

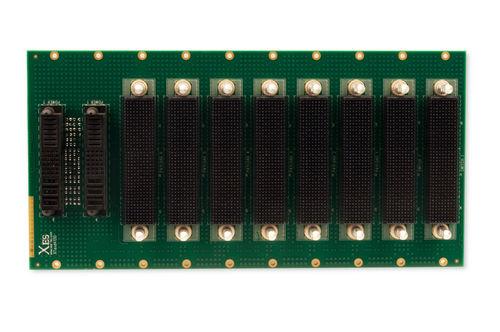

3U VPX Development Backplane with Centralized Switching and Leaf Node Support OpenVPX™-compliant Six 3U VPX payload slots One switch slot Redundant switch slot (optional) Two power supply slots Supports development DC-DC power supply Fat ...

3U VPX Development Backplane with Centralized Switching for Single or Dual Star Topology OpenVPX-compliant Six 3U VPX payload slots Two 3U VPX switch slots in single or dual star topology Two VITA 62 power supply slots Supports development ...

One 3U CompactPCI system controller slot Seven 3U CompactPCI peripheral slots Two VITA 62 power supply slots

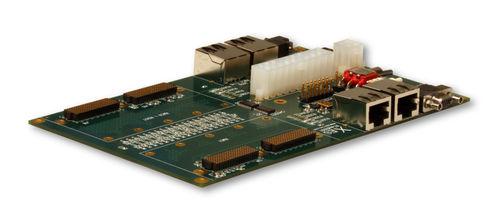

Dual-XMC Carrier for Development and Testing The XTend2001 is a dual-XMC carrier card designed to provide a low-cost and compact platform for XMC modules. The XTend2001, in conjunction with a standard off-the-shelf ATX power supply, provides ...

Current: 1 A
Pitch: 2 mm

Data rate: 20 GB/s

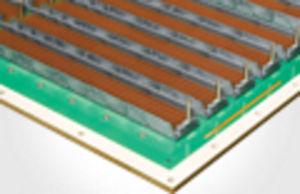

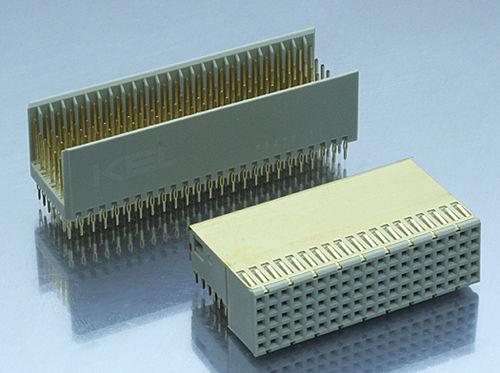

Available in exciting rate of configurations, Amphenol's GbX® E-Series backplane module is a top quality optimized differential connector. This module has the same footprint as the standard GbX. However, this model has a drop-in replacement ...

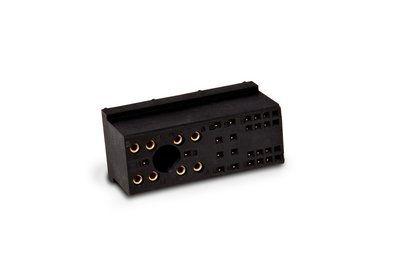

This one of a kind 3M™ Power Backplane Female Connector is designed for ATCA™ Application with an outstanding performance. It has amazingly unique features such as ATCA™ Zone 1 power connector, Backplane right angle header, Daughtercard ...

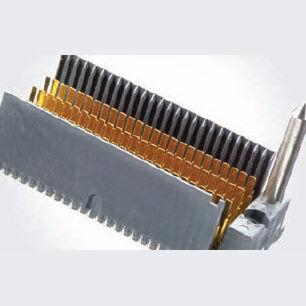

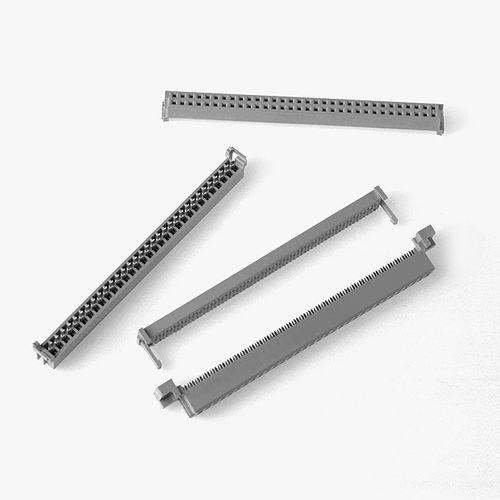

The 62B64 Series features compatibility with DIN 41612 combined with a 64 position, high density and a highly reliable contact design that uses DIN 41612 Type B header connection. It can be daisy-chained or end terminated to a flat cable ...
