Connectors: coaxial/RF

CONEC Combination D-SUB Connectors with IP67-rating are suitable for use in environments where increased protection against moisture and contamination is necessary. All IP67 protected Combination D-SUB Connectors are supplied already ...

SMA-female Straight PCB Mount Coaxial Connector, 50 Ohm.

SSMB-male Straight PCB Mount Coaxial Connector, 50 Ohm. Frequency Range (MHz)0-6000 Gain(dBi) VSWR(max)<1.3 : 1 Impedance(Ω)50 Connector 1SSMB

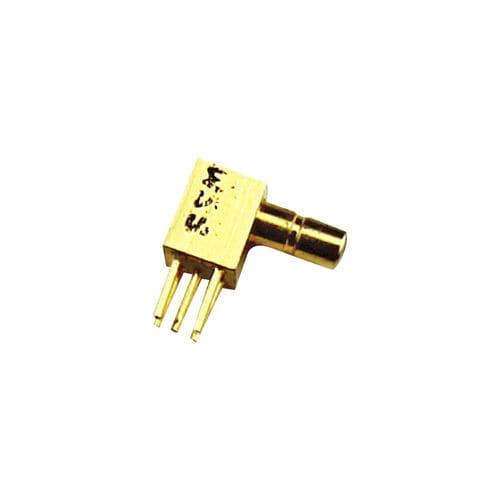

SMB-male Right Angle PCB Mount Coaxial Connector, 50 Ohm. Frequency Range (MHz)0-6000 Gain(dBi) VSWR(max)<1.3 : 1 Impedance(Ω)50 Connector 1SMB

SSMB-male Right Angle PCB Mount Coaxial Connector, 50 Ohm. Frequency Range (MHz)0-6000 Gain(dBi) VSWR(max)<1.3 : 1 Impedance(Ω)60 Connector 1SSMB

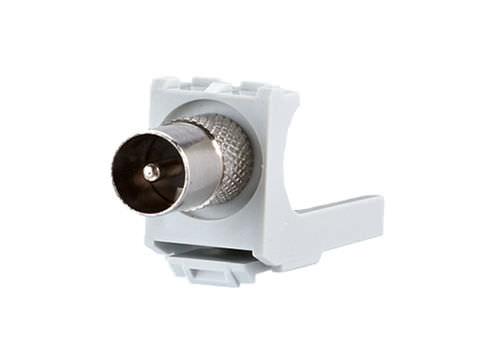

The Coax module IEC plug are connectors designed for high-frequency applications. These are built in a modular construction with a front and rear connection for IEC jack and F plug respectively. They are equipped with an adapter, and ...

The Jack is specially designed to suit high-frequency operations. It is available in two versions: the COAX modul F jack / F jack and the COAX modul IEC jack / F jack. Both of them are accompanied by an adapter which comes in module construction. ...

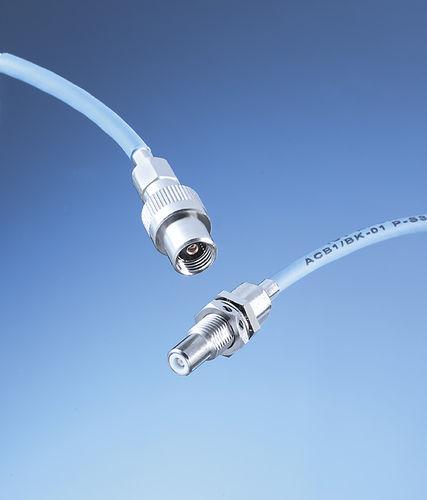

Axon Cable provides a wide range of contacts and connectors designed for avionics and space applications. One of these are the ACB1 (Axon Connector Bus Series 1) that can be crimped onto cables and assemblies, designed to MIL-STD-1553 ...

Belden introduces the new 3-Piece HD Brilliance® BNC Crimp Connector. The 3-piece connector delivers excellent return loss performance and quality that exceeds expectations of the typical 3-piece connector; featuring a precision machined ...

Designed specifically for Belden Brilliance Broadcast and Professional A/V Coaxial Cables, HD Brilliance Connectors maximize broadcast signal integrity, quality, performance and durability. The Watertight Locking Connector features ...

The German as well as United states auto businesses have standardised a substantial-executing, price-efficient RF connector in line with the FAKRA as well as USCAR requirements regarding auto telematics. Having a conventional steel SMB ...

Developed in the 1960s, SMA connectors are semi precision, sub-miniature units that provide excellent electrical performance from DC to 18 GHz using a threaded interface with 50 Ω and are used in ILS landing, array radar, test devices, ...

The 0.25 mm cable pitch reduces the required space. Vertical mating type with a 1.27 mm mating height and 2.81 mm wide slim design. The two-row mating structure ensures insertion reliability. The center island is resistant to problems ...

Features Accurate reference for SWR measurements Precise termination for test instrument or device under test These precision, metrology-grade terminations are used in measurement systems that need to achieve the smallest possible reflections. ...

SMA connectors are offered by TE connectivity specifically designed for performance of up to 18 GHz to fulfill the demanding need for SMA connectors in the wireless communications industry. The product line of SMA offers stainless steel ...
