Data acquisition cards

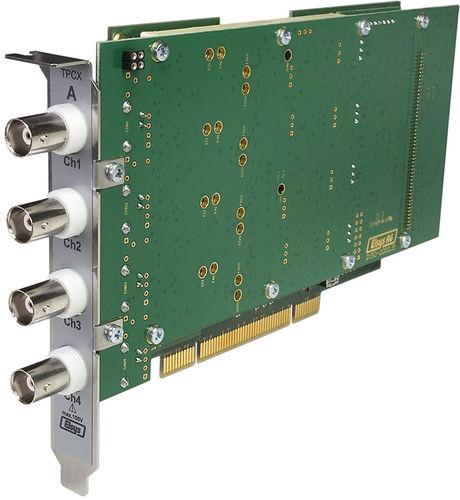

The TPCX Data Acquisition card of Elsys has extensive precision and resolution digitizers. The DAQ provides up to 240 MS/s sample rate, and 14-bit and 16-bit vertical resolution. This can be used both digitally and analogically. For digital ...

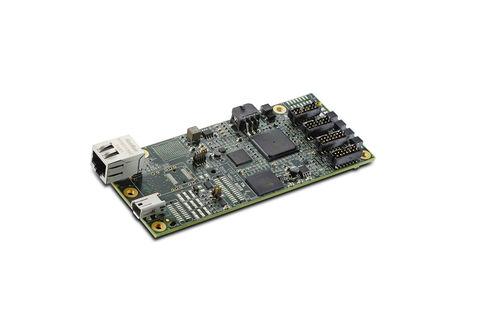

X-GCU is the data acquisition and control board of Detection Technology’s next generation digital X-ray detector sub-system platform. X-GCU together with DT’s digital X-Cards provides a complete detector sub-system for X-ray image ...

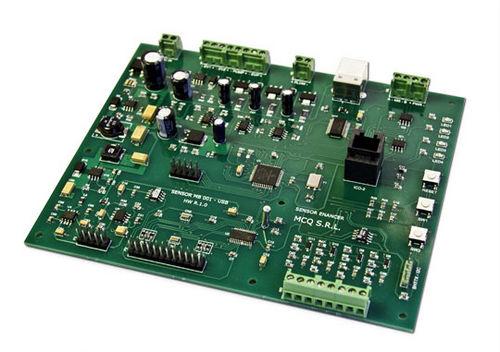

The MCQ data acquisition board is the ideal unit to use for complete data acquisition within test and measurement applications, and can also be used to control a number of different types of actuator. This high efficiency unit can collect ...

The BKPF-L601C is an A to D converter board that modifies a 525 or 625-line material analog video signal to a material serial digital video signal. In combination with other BKPF-L Series function boards, the BKPF-L601C can set up in ...

This is a ten-bit 4:2:2 Frame/Line Synchronizer BKPF-L Series function board that is integrated with a Freeze control which allows for phase adjustment and can be field/frame auto/manual selectable. No more timing problems because it ...

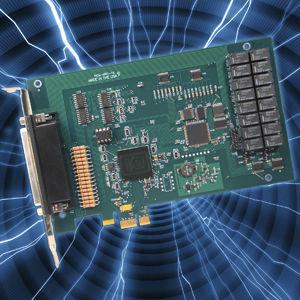

16 optically isolated, non-polarized digital inputs Switchable filters on inputs for electrically noisy environments Optically isolated channel to channel and channel to ground Can detect input state change and assert interrupt 16 electro-mechanical ...

4 ch 3G/SDI Video Capture Card HD, H.264 High Profile Hardware Compression Review/Record resolution up to 1920x1080p @30/25fps per channel SDI Embedded Audio

There are various features available for this model, including support for a 32bit 5V PCI bus, as well as 16bit A/D resolution. The sampling rate is up to 100kS/s, while the differential analog inputs are 32 single-ended channels of 16 ...

Matrox Morphis is a cost-effective peripheral board that features a dual or quad decoder design for fast camera switching or simultaneous acquisition of up to four live video streams, and includes real-time JPEG2000 compression/decompression. Key ...

Matrox Solios eV-CL is a value-packed PCIe® x4 frame grabber that supports the full-range of Camera Link® interfaces (dual-Base, single Medium/Full, 10-tap and PoCL) and offloads typical pixel pre-processing tasks. Benefits * perform ...

The PCI-20428W Series Low-Cost PC Data Acquisition Boards are ideal for general-purpose data acquisition, test, measurement and control applications. They include all the basics: analog inputs and outputs, digital inputs and outputs, ...

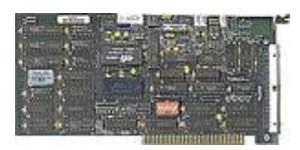

The PCI-20041C-2A and PCI-20041C-3A (DMA version) are customizable data acquisition boards that interface directly with the internal bus of ISA (PC/XT/AT) computers. The boards have 32 points of fully buffered digital I/O already on board, ...

32 SE/16 DI Analog Inputs Sampling Rates up to 1.25 MHz 12/16 Bit Resolution 2 Waveform Analog Outputs at up to 500 kHz per Channel Option, 32kSample for Output Buffering 16 digital I/O, which can be synchronised with the Analog Inputs. 4 ...

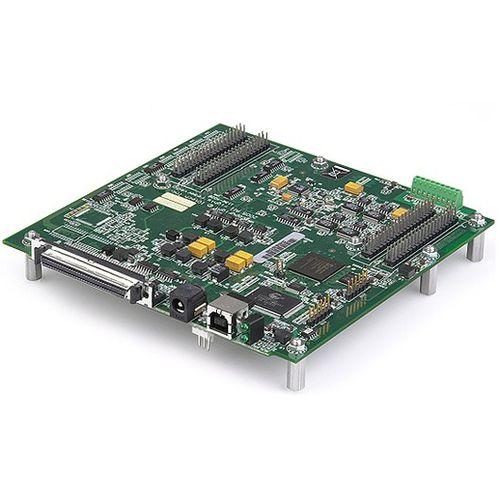

Key Highlights Compare the USB-2600 Series and USB-2500 Series. Designed for OEM and embedded applications 16-bit resolution 1 MS/s sample rate Up to 64 single-ended analog inputs Up to four 16-bit, 1 MS/s analog outputs 24 digital I/O Four ...

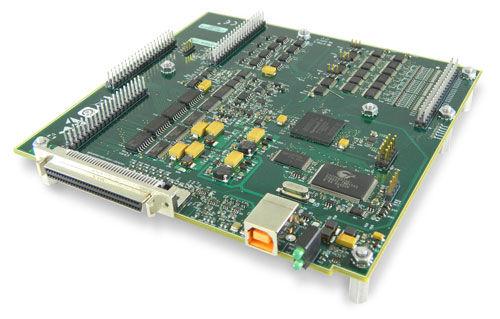

Key Highlights Compare the USB-2600 Series and USB-2500 Series. 8 to 64 analog inputs 16-bit resolution 24 digital I/O, counters/timers (including quadrature encoders) Up to 4 analog outputs 1 MS/s sample rate 4 thermocouple inputs Ideal ...
