Drilling machines, Drilling centers

The DRILL 300 is designed for multi-setup functions that can be manipulated using its seven CNC axes. Engineered with X,Y,Z and W axes that are capable of support from a tilting table and head, it is ideal for drilling holes in one go ...

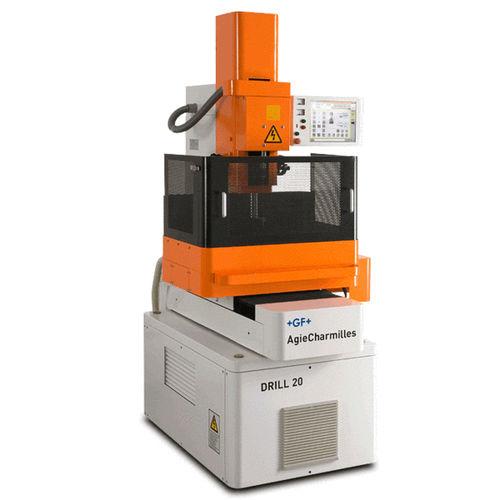

The DRILL 20 from GF Laser Solutions provides quicker installation with the operator console controlling the process monitoring and development. Also, the X-, Y-, and Z- axes have 300 x 200 x 300mm travel passages, and there are diverse ...

Gundrilling milling machine for mold inserts and small-middle size molds and for other workpieces. Machinable workpiece: Ø 1.250mm H 700 mm Horizontal axis X=1.000mm, vertical axis Y=520mm. Optimal drilling diameters: 4 - 25 ...

Presented under the headline "GUNDRILLING AND MILLING IN SINERGY" the new MF1750BB Gundrill by IMSA is suitable for molds weighing up to 40.000 kg (different tables available). The machine structure can accomodate a mold that ...

Presented under the headline "GUNDRILLING AND MILLING IN SINERGY" the new MF1450BB Gundrill by IMSA is suitable for molds weighing up to 12.000 kg. The machine structure can accomodate a mold that has a diameter in rotation ...

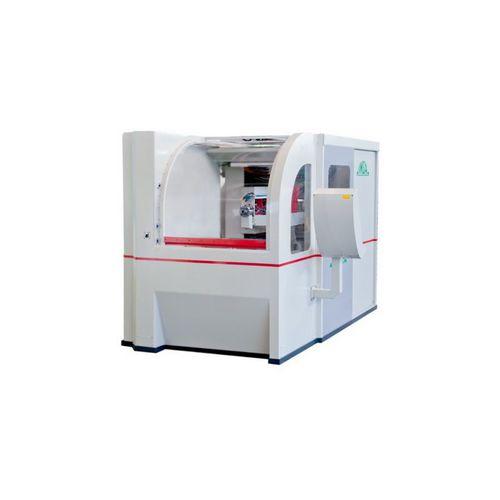

The MF800C is the simplest 3-4 axes IMSA Deep Drilling Machine for mold inserts and small blocks. It is suitable for small molds up to 2.000 kg (on optional rotary table) or 4.000 kg (on fixed table only). Optimal drilling diameters: ...

MF1000/2F is a gundrilling/milling machine for medium-size molds and blocks weighing up to 6.500 kg. This machine version is equipped with rotary table. Part size (diameter in rotation) inside the machine structure is 1.600 mm. Optimal ...

NEW DRILLING-MILLING MACHINE FOR GUSSET PLATES This new machine can perform various drilling (with carbide and HSS drills), milling (long holes, big diameters), marking and deburring operations of gusset plates up to 1000 x 650 x 40 ...

NEW COMPACT DRILLING MACHINE FOR PROFILES – HD-S HD-S, VERNET BEHRINGER’s new compact drilling machine for profiles, will make its world premiere at EMO fair. This model has been inspired by the HD-XEVO drilling-milling ...

This machine is equipped with carriage and gripping measuring system to guarantee precision and efficiency. This solid machine offers an exceptional and ergonomic design. The device is integrated with a 180° access for all loading ...

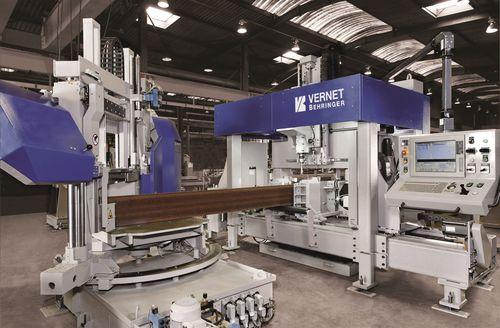

The numerically controlled drilling unit, HD, has a rigid framework. It has been designed in a way that flat bars, angle sections, and rectangular tubes can all work real quick. The tubes can measure up to 1800 x 600 mm. Drilling spindle ...

The MAPS series are beam lines manufactured by Vernet Behringer. The tools are a flexible marking, punching, shearing systems used for metal profiles. It is designed to switch from angle sections to flat bars. The devices' modular design ...

This automatic machine has been designed for the inline vertical and inclined drilling of PVC profiles. As a stand-alone machine it is positioned between the haul-off and the cutting device but can also be supplied as a unit to be ...

Cutter head with variable angle, plus large travel distances ensure maximum versatility - Premium cast-iron machine frame with adjustable dovetail guides on all axes - Motorized cutter head movement and hand-wheel for exact positioning ...

Automatic drilling machine for drilling of plastic pipes (PVC, PE etc.) in or out of extrusion line. Execution of 1 or several parallel rows of holes; Minimum distance between the holes 110 mm; Number and size of the holes on the customers ...
