Electromagnets

Voltage: 24 V

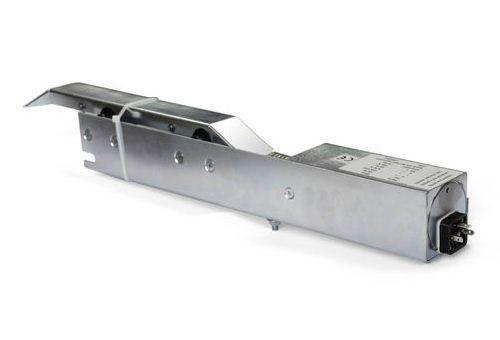

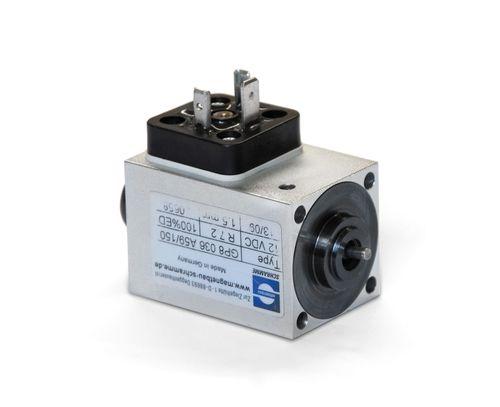

Embedded-design solenoids is Magnetbau Schramme’s specialty. Regardless of your requirements, if it is at all possible, we will design the correct electromagnet/solenoid that you need for your system. We have the capacity to produce both ...

Stroke: 3 mm - 8 mm
Force: 23 N - 149 N

Stroke: 10 mm - 30 mm
Force: 19 N - 498 N

The I series, manufactured by ABTrasmission, are single-coil linear solenoids equipped with a cylindrical electric coil. They have a power supply that ranges from 18 up to 48 A and length from 20 up to 45 mm. These linear solenoids are ...

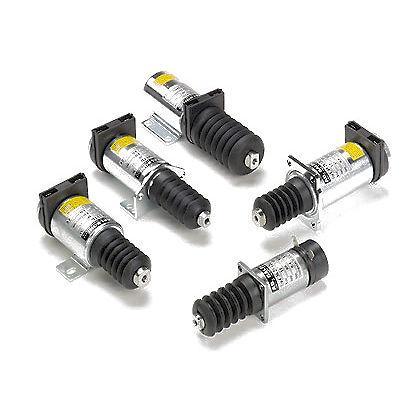

The Double-Coil Linear Solenoids are specifically designed with a modern and robust finish to enhance the device's performance. They are built with a very high pulling force capability which provides a holding function in a continuous ...

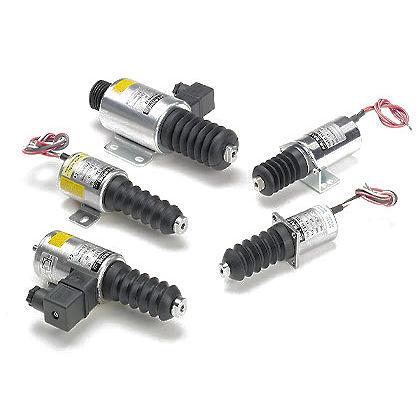

Double-coil linear solenoids, which, besides a high pulling force, offer a holding function with a continuous duty cycle of 100% ED. By means of an OUTSIDE SWITCH, both circuits can be activated by a three-way switch. In case of specific ...

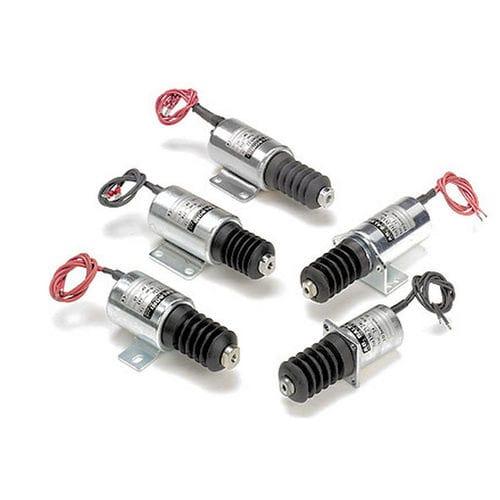

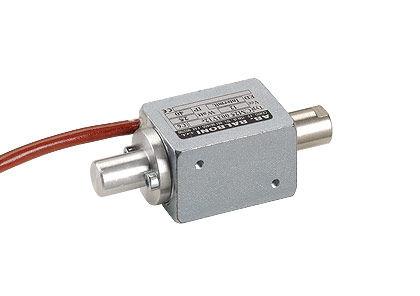

The single-coil linear solenoid is intended to be used in some applications that require only small movements. This device offers a stable force during the entire stroke, both in traction and thrust applications. Moreover, it can also ...

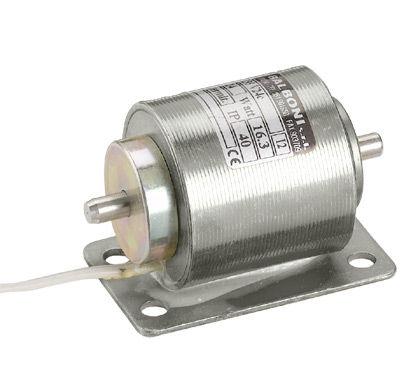

The Single-Coil Linear Solenoids are ideally designed to provide a good quality performance and functionality. They are built with a rotating motion of up to a maximum angle of 45°. They are provided with several bearing units mainly ...

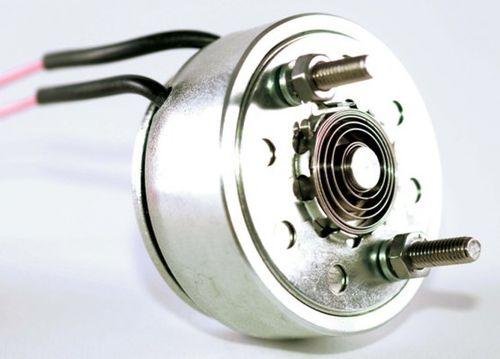

Solenoids special designed to transform the standard axial stroke in a rotary action. Many sizes and rotary angles both clockwise and undockwise are available for your choice.

Stroke: 0 mm - 60 mm
Torque: 0 Nm - 97.9 Nm

Stroke: 0 mm - 14 mm
Torque: 0 Nm - 60 Nm

Stroke: 0 mm - 17 mm
Torque: 0 Nm - 1.58 Nm

Stroke: 0 mm - 25 mm
Torque: 0 Nm - 66 Nm

Voltage: 12 V - 380 V
