Guide shafts and rails

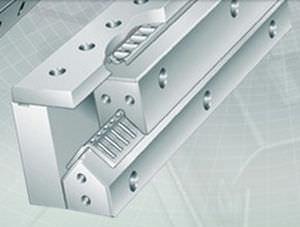

The ML/V guideway pair has a standard design which is equipped with an adjusting gib as well as angled needle roller flat cages. The gib is known to preload uniformly throughout the guide-way with a surface pitch of 1,5%. As the gib ...

J and S guideways make up these guidance systems which are separated by needle roller flat cages. They are utilized for limited stroke lengths and as non-locating bearings. High and flat versions of the guideways are supplied. They ...

W 30 x H 20 mm 2 precision steel shafts Ø 8 Anti-twist lock Aluminium shaft housing profile, naturally anodised Fixing from below with M6 tapped rails in the T-key insert Conditionally self-supporting Special lengths to order Weight: ...

The LFS-12-1 is a precision linear guide rail from Isel that has 2 precision steel shafts, both with a 12 mm diameter. It has a dimensions of 40 x 27 mm in an aluminum shaft housing blocks. It can also be secured from above or below by ...

The Haydon™ LRS™ Series of Precision Linear Guide Rail, manufactured by Haydon Kerk Motion Solutions, is mainly used to provide controlled positioning along the axis of a robust aluminum linear slide. This device is composed of stationary ...

Made of the same quality components used in the RGS® series, the Kerk® WGS Linear Slide utilizes a screw-driven carriage that offers reliable, continuous linear speed while maintaining accurate positioning. The length and speed of the ...

The BGS Linear Rail combines many technologies into a single integrated linear motion platform. The system provides excellent load capability and is engineered for both normal and overhanging loads. High roll, pitch, and yaw moment loading ...

Rail length: 0 mm - 2000 mm

Diameter: 0.19 in - 2 in
Length: 0'00" ft - 12'00"

This guide roller and V profile rail is developed by Norelem. It features a galvanized surface finished version and is made with steel materials. The fixed bearing rail is the mainly responsible for absorbing of radial forces and axial ...

Type M/V Plastic-coated sliding guides friction value 0.06 - 0.1 at an area pressure of 0.5 N/mm speed up to 15 m/min at high transverse forces or transverse accelerations, vibrations and impacts for high-frequency, extremely short strokes V-rail ...

Cross-roller guide rails type R/K - low friction coefficient (M = 0.003) - speed of up to 50 m/min - Type R (roller guide) is used in large load and highest precision requirements - Type K (ball guide) is less dirt sensitive and suitable ...

Diameter: 22 mm - 68 mm
Length: 20 mm - 80 mm

Diameter: 6 mm - 25 mm

Diameter: 6 mm - 10 mm
Length: 66 mm - 120 mm
