Interface communication boards

The Elma 80-Channel Reconfigurable Digital I/O - Model 8055 is suitable for designs requiring high speed single ended operations. It features a 32-bit PCI to Local Bus Master Bridge and an impressive 64 of 80 I/O lines accessible via ...

With model 8017, a single card is capable of providing multiple functions. There are 16 digital I/O lines for general purposes based on the Zilog 8536 chip. At 115k baud, asynchronous communication is available. The controls include CTS, ...

The 16-port RS232 unit has 16 16550-based UARTs and can run from 300 baud to 115 Kbaud. This uses so-called interrupt requests from one of four INTx units on a PCIbus. The I/O is accessible from a 68-pin SCSI connector on its front ...

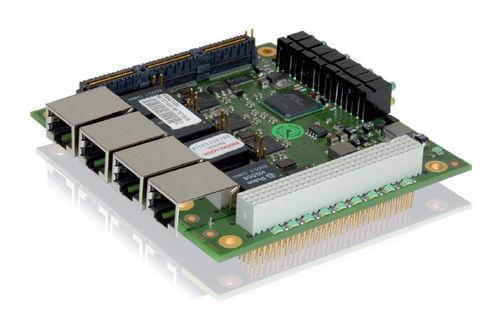

Specifications 4x 1Gbit/s LAN 4x RJ45 interface PCI104: pass-through The MICROSPACE® PCI/104-Express MSM4E104EX expansion card contains four 1Gbit/s LAN controllers (825745L PCIe) which are connected over a PCIe switch ...

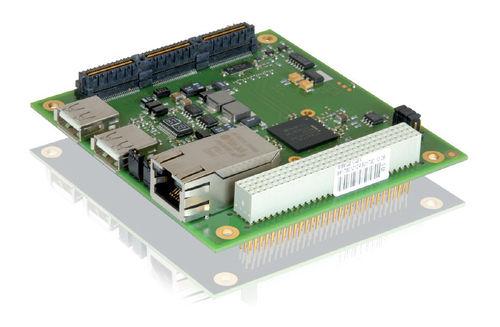

Specifications 1Gbit LAN PCI Express-Bus 2x USB PCI104: pass-through The MICROSPACE® PCI/104-Express MSMGE104EX expansion card has a PCI Express 1Gbit LAN controller. The product permits connection to the 1GB Ethernet ...

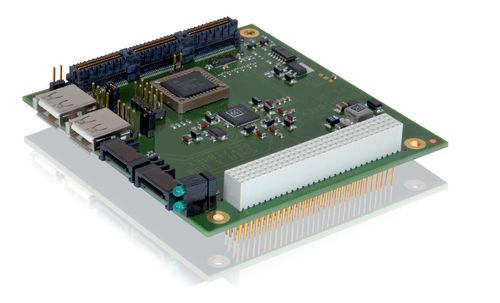

Specifications 2x SATA 300MByte/s PCI/104-Express 2x USB2 PCI104: pass-through Specifications 2x SATA 300MByte/s PCI/104-Express 2x USB2 PCI104: pass-through The MICROSPACE® PCI/104-Express MSMSA104EX ...

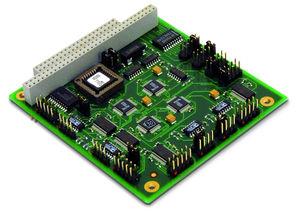

Specifications 4-channel serial interface RS232C, RS422, RS485 ISA bus The MICROSPACE® PC/104 expansion card MSMX104 has a 4x UART controller. There are 4 channels available; RS232C or RS485 interfaces can be selected. Drivers ...

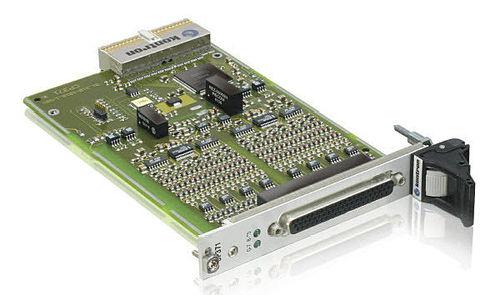

The CP371 is the ideal solution for use in all kinds of applications that need analog interfacing. It has 1 LSB basic accuracy and a selection of 8 channels and a 12 bit resolution. The CP371 is very reliable even when being used in the ...

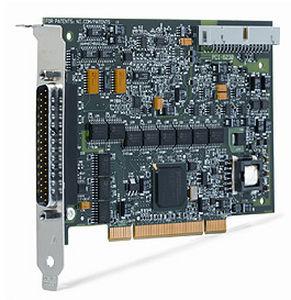

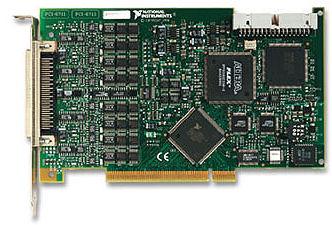

Digital triggering and external clocking with a defined range that is generated by a controller and sent to a controlled device. NI PCI-6713 has 8 channels and 8 (5 V TTL/CMOS) digital I/O lines. Designed with 2 up/down counter/timers, ...

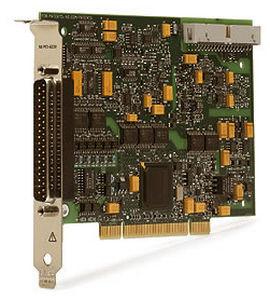

2 16-bit analog components (833 kS/s); 24 electronic digital I/O; 32-bit counters NIST-traceable standardization certification and over 70 transmission conditioning alternatives Correlated DIO (8 clocked lines, 1 MHz) ...

60 VDC constant financial institution solitude, 1,400 Vrms/1,950 VDC station-to-shuttle solitude endure for five s 4 analogue outputs (±10 V), 16-little bit quality, as much as 500 kS/s 6 electronic enter and 4 electronic productivity, ...

60 VDC constant financial institution solitude, 1,400 Vrms/1,950 VDC station-to-shuttle solitude endure for five s 2 analogue outputs ( to 20 mA), 16-little bit quality, as much as 500 kS/s 6 electronic enter and 4 electronic productivity, ...

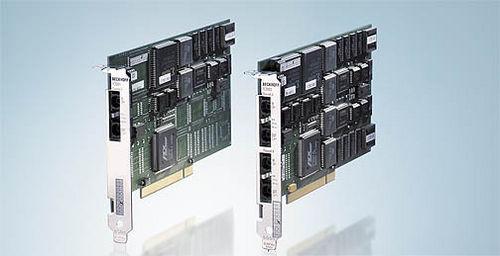

The interface cards of series FC2001, FC2002 | Lightbus PCI have been remarkably engineered and are customized keeping in mind the solution for PC-control compatible technology. The efficiency of this equipment has many useful features ...

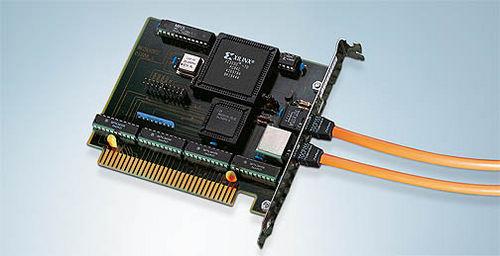

C1200 | Lightbus ISA user interface card To as much as 255 dispersed Lightbus key in and additionally yield segments could be linked to a typical Computer together with the C1200 user interface card. Fiber optics bring information ...

The C1300 | Lightbus VME bus interface card provides up to 255 input and output modules connectable to the VME bus through a single C1300 interface card. Data is carried using fiber optics at 2.5 Mbaud between the industrial peripherals ...
