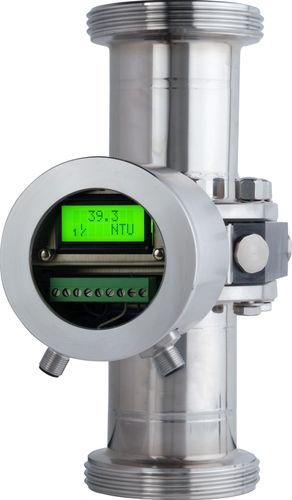

monitoring turbidity meter / in-line

TURBIDITY METER (4-BEAM ALTERNATING LIGHT)

»» FILTRATION MONITORING IN BEVERAGE PRODUCTION
»» SEPARATOR MONITORING
»» WATER RECLAMATION AND PROCESSING (COW)

» Precise measurement at low to medium turbidities (e.g., fruit juice, beer)
» 90° scattered light/4-beam alternating light method as per EN 7027
» Units switchable between NTU and EBC
» Contamination of the optics is compensated
» Four freely selectable measurement ranges, externally switchable
» Smallest measurement range: 0...5 NTU or 0...1 EBC
» Largest measurement range: 0...5000 NTU or 0...1250 EBC
» Color-independent measurement (wave length 860 nm)
» Compact device, no separate evaluation unit needed
» Smallest pipe diameter: DN 25
» 3-A certification with Tri-Clamp process connection and hygienic thread connection
