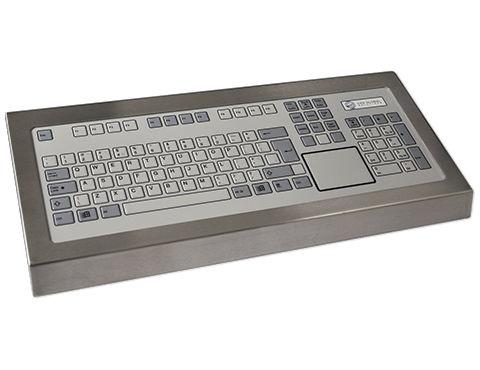

desktop keyboard / 128-keys / with touchpad / steel

The 128P series keyboard has been designed as a direct rugged replacement for a standard 101/102 PC keyboard with the addition of 24 function keys as well as integrating a 65mm x 50mm Touch Pad.

Language and connection variants make this a versatile and easily customisable product.

A dual interface, when using PS2, allows engineering override if required.

Ideal for tough applications and suitable for wash down areas.

FEATURES AND BENEFITS
3 year warranty as standard
Up to 5 year extended warranties
Wear & Chemical resistant overlay
Steel construction
>1 million operation switches
Embossed keys for enhanced feel
IP67
Alternative mounting
Integral 65mm x 50mm touch pad
Keys: Sealed mechanical
Key Travel: 0.4mm
Life Expectation: >1 million switch cycles
Operating Force: 160gf ± 50gf
Storage Temperature: -40°C to +85°C
Operating Temperature: -20°C to +60°C
Relative Humidity: 95%, non-condensing
Supply Voltage: 5V DC ± 5%
Supply Current: <75ma (non-illuminated)
Vibration: 5G, 5-2KHz any plane
MTBF: 60,000 hours
MTTR: 20 minutes
Weight (nominal): 3.4KG (cased), 1.25 (uncased)
Dimensions (mm): 497 (W) x 240 (H) x 44.5 (D) cased
Seal: IP67
