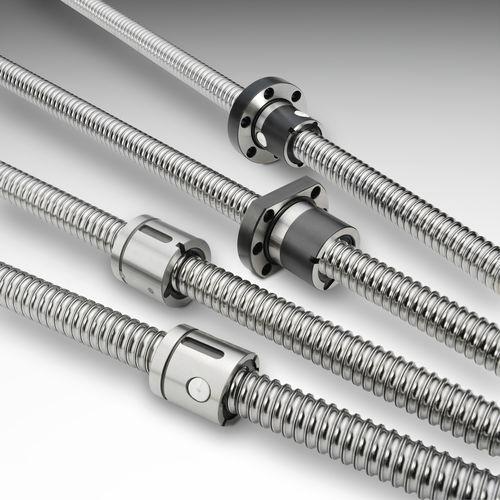

Ball screws

Diameter: 6 mm - 16 mm
Load rate: 1.9 kN - 10.7 kN

Diameter: 6 mm - 16 mm
Load rate: 1.2 kN - 4.8 kN

Diameter: 20 mm - 63 mm
Load rate: 14 kN - 91.2 kN

Thomson provides a standard range of high load ball screws up to 160 mm diameter with max. 1400 kN dynamic load capacity, and customised ball screw assemblies according to specific application demands are available upon request. Specifying ...

Designed to tolerate a moment or side load: The unique design of the Glide Screw allows it to handle both axial, radial and moment loads without additional guidance. The result is an efficient and space-saving design that is quick and ...

New motorized lead screws from Thomson combine a hybrid stepper motor and a precision lead screw together in one compact envelope. They offer increased torque density, improved efficiency, rapid prototyping / field serviceability, and ...

The ball screw drive by THOMSON is a combination of ball screw and ball nuts with circulating ball bearings that transforms either circulating motion into liner motion or the other way around. The uniform design of each screw ball had ...

DryLin® Screws or trapezoidal threads and coarse threads from Igus® are tool box inventories that assist various applications requiring fixing or driving. Rotary motion is converted into translational motion through screw drives. DryLin® ...

These units are spherical trapezoidal threaded self aligning nuts that are used to compensate for angular errors in screwed on plates. The thread is directly attached to the spherical ball and adjusts for the compensation of manufacturing ...

Diameter: 7 mm - 11 mm
Load rate: 105 N - 176 N

Ball screws Thanks to their high-precision mechanical design, FAULHABER ball screws are ideally suited for positioning tasks requiring a high degree of accuracy. Combinations with DC-Micromotors with high-resolution encoders, integrated ...

Lead Screws and Options Stepper motors can be used for more than just a rotation. When combined with lead screws, they provide a high accuracy linear positioning system that provides the benefits of a stepper (open loop control, long ...

Mitutoyo precision lead screws are suitable for precise positioning and fine-feed systems along with conventional micrometer heads. The screws are highly simple and economical. In addition, Mitutoyo also designs customized lead screws ...

MISUMI offers a wide range of ball screws and lead screws. You can select between precision and rolled ball screws. Parameters, such as length and shape of the shaft end and the nut form, can be configured according to your design. For ...
