Clamping plates

CARR Lane Manufacturing Co. provides modular clamping plates that are suitable for many milling machines. These rectangular tooling plates allow connection to generate a selection of length and width combinations. For mounting options, ...

Features: Parallelism: 0.01/100 mm Clamping surface faces: smoothed Hardness: unhardened Material: case-hardened steel Alignment hole and centre hole: with hardened bushes in accordance with DIN 179 Base surface : with hole pattern according ...

High-strength aluminium, suitable for double clamping station K10.2 Note: On request, we can incorporate mounting holes according to your specifications in the fixture plate. On request: Other dimensions, insertion dimensions and ...

High-strength aluminium, suitable for double clamping station Note: Fastening bores for handles are attached to the end faces of the interchangeable pallets. See dimensions table L1 and G1. We can incorporate additional fastening bores ...

STOLLE face plates are produced in a process which excludes inherent stresses and delivers high strength and stability. We can manufacture our face plates according to your preferences. The dimensions of the face plates can thus be designed ...

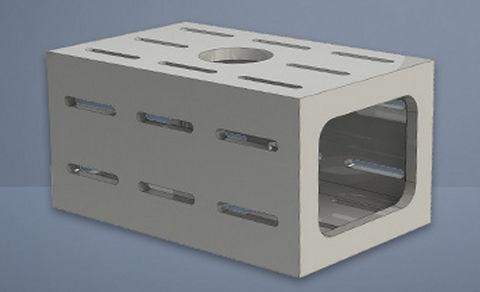

The four-sided clamping blocks from STOLLE with clamping slots offer a wealth of opportunities for the alignment and clamping of your work pieces for machining. We supply these clamping blocks with up to five clamping surfaces. DIN 650-compatible ...

- Material: special cast iron with steel alloy - Wear-resistant surface - Surface according to 876/III machined - 2 frontsides parallel to the clamping surfaces - 4 sides with clamping slots - 2 sides open

The ADP1E is an emergency universal adapter plate. The device measures 6" diameter and 1" tall. The plate is made from 6061 aluminum material. The device consists of one ADP1E and 2 locating pins. A detailed dovetail programming and inspection ...

These circular plates are designed from premium steel that underwent thermal treatment for stress alleviation. Available in milled and segment/precision ground thickness variations, these plates can also be incorporated with chamfers ...
