Form and surface measuring instruments

The Surfcom and Countourecord machines from Zeiss are made in the 1500 to 2900 series with one base column for every model. The sensors are the only items that will change. Added sensors may be placed to create a contour measuring system ...

The Surfcom 5000 is made by Zeiss and is accurate and fast with a universal body to make all surface measurements easier to operate with. This measures more surfaces in just one step while making it more effective than many other conventional ...

The Zeiss Rondccm 41/31 with precision rotary table on air and analysis functions belongs in excellent machines such as Fourier analysis. used for measuring axis in additional range of parameters, such as cylinder form, parallelism, ...

RONDCOM 54/44 RONDCOM 54 is a highly accurate form tester that features a wear-free rotary table mounted on air bearings with the accuracy of 20 nm and comes available in two versions SD and a compact DX version. This new design outclasses ...

The MG121 enveloping circle gauge by Schaeffler Germany provides high accuracy in calculating enveloping circle interiors, as well as cage assembly. This is achieved by the device's two dedicated hardened and accurate ground surfaces ...

If users are looking for precision quality control of crankshafts through a high-quality balancing unit, as well as manual loading and unloading, this device will most definitely cover most of these needs. The product is expandable ...

Product features Reference form measuring station in a new dimension The journey from high precision measuring axes to competent measurements is often a long one #96 but one which the MFU 100 has mastered completely. Only the MFU ...

Product features The tasks of production metrology are growing with high-speed parallel to the innovations in the production process. By ever increasing accuracy requirements and declining cycle times in the production (turning, milling, ...

The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces. Fast, accurate and very user friendly, the Elcometer 224 Surface Profile Gauge is available ...

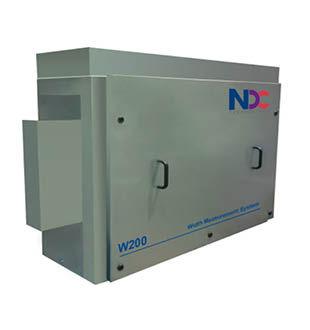

NDC Infrared Engineering's optical gauging systems provide accurate, reliable measurement distance, width, speed, thickness and flatness of rolled aluminum, steel and non-ferrous products. The W200 Width Gauge isdesigned for use with ...

Todays Rometer incorporates over 30 years of metals product experience and now benefits from the proven NDC TDi system platform. NDCs Total Distributed Intelligence (TDi) architecture creates a fully digital system that improves system ...

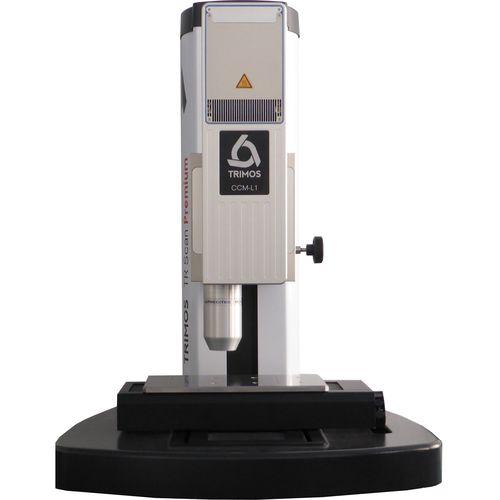

TR Scan allows the measuring of the most sensitive surfaces with astounding speed and precision. The TR Scan can evolve over time, through its different technologies. It meets a wide range of applications: • Modular instrument with ...

Trimos' Horizon and Horizon Granite are horizontal measuring systems generally utilized for applications that include setting, length checking, and interior and exterior diameter measuring of comparative measuring components. They may ...

Measurements: profile form, profile roughness (Ra, Rq, Rz...), surface texture (Sa, Sq, Sz...), volume, 2D, automation, 3D inspection including GD&T InfiniteFocus is an optical 3D micro coordinate system for form and roughness measurement. ...

As fast and intuitive as 3D surface measurement can be InfiniteFocusSL is a cost efficient optical 3D measurement system for easy, fast and traceable measurement of form and finish on micro structured surfaces. Users are able to measure ...
