Machine tool vises

APPLICATION RANGE Collision free 5-side machining in one operation Clamping system mechanical-mechanical with power transmitter, manually operated Short, compact design TECHNICAL FEATURES with tension clamping, 0-point of workpiece-end ...

The 743-10 RKK is a NC compact vice SGN jaws manufactured by Rohm. The tool is designed for the CNC milling machines and machining centers that require high-degree accuracy rates. This device comes in a wide range of sizes, like the RKK ...

The Type 749-10 RKD is utilized for flexible clamping on production systems and machining centers. It can provide any of three clamping positions - lateral, vertical and horizontal. The clamping system can be manually operated or mechanically ...

The type 749-00 RKD-M is an NC-compact twin vice which has reversible stepped jaws and a center jaw. It features a large clamp stroke of 50 mm per jaw. The solid steel body of the unit, as well as its guide surfaces, is hardened and ...

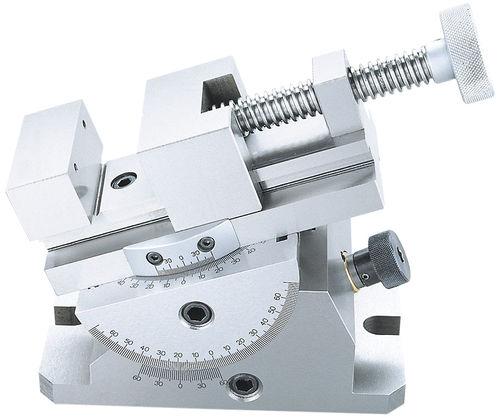

Precision Grinding and Control Vise Details - swivels on 2 levels, 360° horizontal, ± 45° vertical - scale for precise minute readout - screw for upward and downward swing - for grinding, boring, milling, eroding - weight: 12 kg

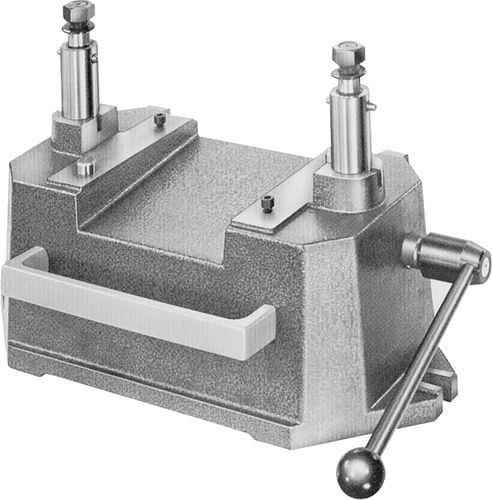

The 08550 model is manufactured by Norlem, and is a drill vise with a drilling jigs size of 3 to 5 that complies with the DIN 6348 standards. The drill and support plates are prepared dependent on the bore spacing of the part to be machined. ...

The 100 E Series of Jaw, manufactured by Syderic, specifically is designed for machine tools applications. It is configured in a size of 65 x 155 x 215 mm. This series can generate with a jaw opening of 100. Moreover, this product ...

Width of jaws (mm) 130 Jaw opening 130 Height of jaws 35 Mors en V vertical OUI Height 72 Width (mm) 176 Length (mm) 254 Weight 11 Largeur des lumières (mm) 13 Entraxes des lumières (mm) 148

Width of jaws (mm) 150 Jaw opening 150 Height of jaws 50 Mors en V vertical NON Height 90 Width (mm) 240 Length (mm) 315 Weight 23 Largeur des lumières (mm) 13 Entraxes des lumières (mm) 200

Vice, manual, centric clamping - Repeatability accuracy: 0.01mm - Operating temperature range: from 5°C to 60°C - Operating principle: screw - Stroke: from 30 to 150mm - Material: hardened steel - Fixing solution: screw / zero ...

Vice, pneumatic-hydraulic, centric clamping - operating pressure: 9 bar pneumatic / 60 bar hydraulic - repeatability accuracuy: from 0.01-0.03 absolute - operating temperature: from 5°C to 60°C - operating principle: wedge - hook ...

Vice, pneumatic-hydraulic, centric clamping - operating pressure: 12 bar pneumatic / 15 bar hydraulic - repeatability accuracuy: from 0.03-0.05 absolute - operating temperature: from 5°C to 60°C - operating principle: wedge - hook ...

Vice, hydraulic, centric clamping - operating pressure: 45 bar hydraulic - repeatability accuracuy: from 0.02-0.05 absolute - operating temperature: from 5°C to 60°C - operating principle: wedge - hook kinematics - stroke range: ...

The dual vise, manufactured by LAM PLAN, is especially made for various machine tools with a fast tightening system. To obtain a maximum length clamping, the vise consists of a 2 x 2 elements without sole. The width of the jaw is 80mm ...

Makro-Grip 5-Axis Vice - Compact and unmatched holding power for the 5-face machining of blanks and unfinished parts. - Best accessibility for 5-face machining - Exceptional holding power with lowest clamping forces due to the patented ...
