Motorized rotary positioning stages

The IKO Alignment Table At rotary positioning mechanism for precision angle correction utilizes a high rigidity steel table and bed fitted with the IKO Crossed Roller Bearing for table support. The device converts the linear motion produced ...

This is a Linear and rotary positioning stage manufactured by Jenaer Antriebstechnik which comes with a fitted X-Y table having a 2 synchronous rotational axes. With this tool, it can be used mechanically and electrically ready for a ...

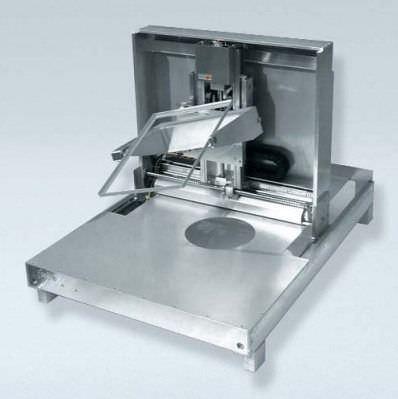

The 5-axis Handling System features x,y and y axes and 2 rotation (α and β) axes. It has dimensions of 600x800x400 mm³, and is designed for simple and easy mechanical and electrical connection. Spindle drives are mounted on x, y and y ...

The Completely Fitted Handling System is ideally designed to provide a good quality performance and functionality. It is built with several axes including the x1, y1, α1, x2, y2, z2, β2, α2 and more. It is available in a custom-made adaption ...

The innovative Smart_Rotating_Robot is designed to extend the Smart_Projector’s range of application, allowing control quality check to cylindrical parts and any other item that needs to be examined on different projection planes at defined ...

The CRP positioner consists of a diaphragm exposed to the regulating signal pressure, of a feedback spring and a double acting spool valve connected to the diaphragm and feedback spring by the rod. The CRP-3/M-/EP positioner (fig. 2), ...

SR-CCK positioner is designed for the proportional operation of rotary single or double acting actuators, to actuate butterfly, plug, ball valves, etc. It is usually located in the control circuit between the regulator and the actuator ...

KSMR series uses cross ball screw bearing. The device offers motion performance, runout and adjustment for related index and different angles. It also provides micrometer and screw that ensure high sensitivity. The instrument can be used ...

The T-OMG Series Miniature Motorized Gimbal Optic Mounts with Built-in Controllers from Zaber is engineered with a bi-axis gimbal mount with a +-7° range. It is capable of dealing with 25 mm optics. The unit also has an integrated controller ...

M30×1 diameter platform insert two 25 mm (1 inch) retaining rings centered platform insert Inch version 860-0140E is available We offer fine rotary stage 860-0140 with a micrometer screw. Fine motion range is 15° with resolution of 1 ...

If you turn the adjusting knob clockwise, you will rotate the turn table counter clockwise as well by means of a worm gear. In addition to this, when it comes to the accurate rotary positioning, it is suitable for all component types ...
