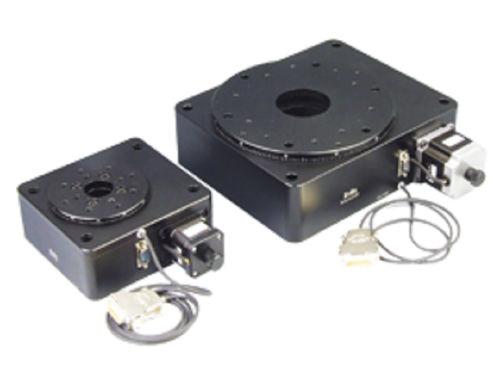

Motorized rotary positioning stages

Ultra-high adjustment sensitivity Convenient remote operation Ultra-compact — ideal for systems integration Set-and-forget long-term stability Available wth direct read encoder and Conex controller Vacuum Compatible Versions The Agilis ...

Ultra-fast, two-axis rotation and linear z-motion for up to 50 mm diameter optics Piezoelectric travel range of 2 mrad or16 µm Direct piezo design provide high-bandwidth control Ultra-compact The PSM2 is a high-speed, tip, tilt, and ...

Orthogonal, coplanar angular adjustment Uncoupled tilt adjustments with sensitivity to 1 arc sec Standard or lockable adjustment screws or differential micrometer PO Tilt and Rotation Stages provide two independent tilt adjustments plus ...

The 481-A High performance rotation stage model from the 481 series is a rotary stage which is suitable for the pure adjustment of a component after operating it at a particular angular position. It has an internal platform which rotates ...

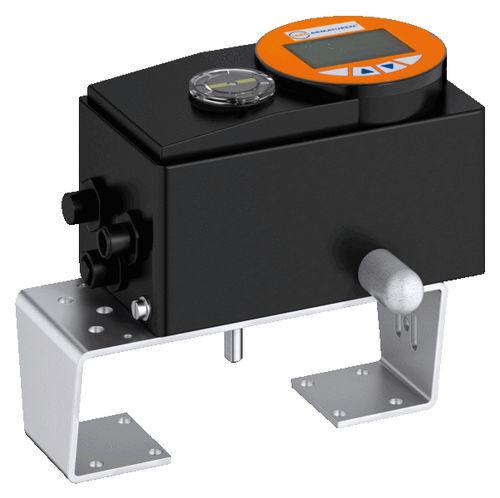

Digital Electropneumatic Positioner Type EP 501 Operating voltages: 24 VDC +/- 10% Setpoint setting: 0/4 to 20 mA and 0 to 5/10 V Analogue feedback: 4-20 mA, 0-20 mA 0-10 V, 0-5 (optional) Binary input: 1x galvanically ...

Compact rotary axis type. High-precision bearing specifications are also available. 1. Positioning repeatability in one direction. 2. The maximum speed may vary depending on the moment of inertia.

Rotation Module - Hi-Precision Motorized Rotary Stage 5 Axis Manual Positioning Adjustment (X, Y, Z, C, Theta) Variable Rotational Speed Adjustment / Fixed Jog Speed Horizontal or Vertical Mounting Bracket with ...

Linear with Theta Single Axis Motorized Linear Stage Motorized Rotary Stage, Three Jaw Chuck and Mounting Plate Variable Speed Adjustment Stage Travel: Application Specific Mounting Assembly with Manual Positioning ...

Stroke : 4 in - 6 in

Stroke : 2 in - 6 in

Large Tip Tilt mechanisms are widely required in Optronics since they provide precise pointing for space telecom transmissions. Commonly available mechanisms may be divided into two main categories. The first is based on magnetic technology: ...

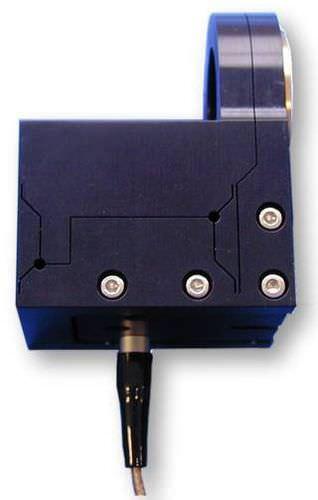

This piezo positionner OPP120SM uses the amplified piezo actuator of CEDRAT TECHNOLOGIES normal type of actuator and some extra guidance to move the target vertically with perfection. The features available with this are Strain Gauges, ...

The RF 1 utilizes a low play toothed belt drive, which has a stepper or DC servo motor. The device consists of an electromagnetic brake, with 60 nm capability. Also, it has a CNC controller, and a step motor drive. In addition, the ...

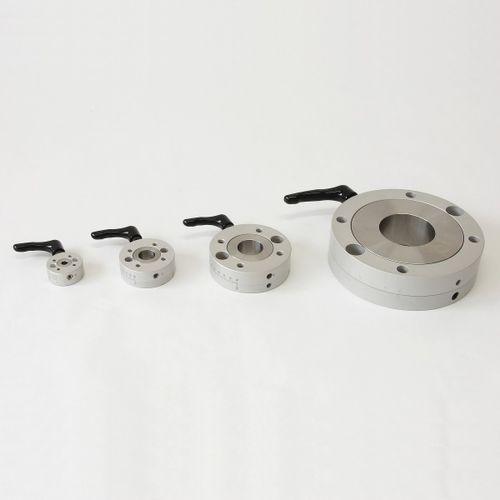

Rotary adjuster MDV 50 and MDV 80 for manual operation with high-quality screw gear. Features - max. radial torque on the plate: 5 Nm - max. clamping force: 10 Nm - main dimensions: Ø 55 mm - weight: 610 g / 1600 g

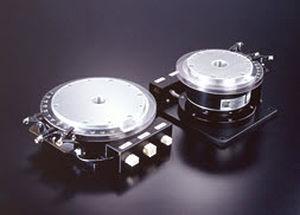

The RT is a rotary table manufactured by IKO. It is equipped with a crossed roller bearing for delivering high accuracy and rigidity. The unit adopts an optical encoder with high resolution. It also ensures high-speed performance. ...
